wheel load measurement systems

measurement & test systems PRODAT RKM stationary

Update: 17.09.16 language : English >> Deutsch

overview

wheel load measurementThe system PRODAT RKM consists of three different models to statically and dynamically measure wheel and axle loads. PRODAT as an independent supplier of complete system solutions is able to cover every usecase in practice.

For these systems there are just minor interventions at the rail track necessary whereas the system features high measuredness and small dimensions.
The measured wheel loads are grouped into axle and bogie loads and in addition wheel and axle load differences and masses are calculable.

All PRODAT RKM models are equipable with spring hyteresis overcoming devices.

setup

PRODAT models RL 1000 to 3000 consist of three main components:

  • sedation track
  • load transducer
  • measuring computer

sedation track

The sedation track is a specially designed rail track which reduces:

1. for static measurements: the influence of the rail track attitude onto the wheel load distribution is downtrodden.

2. for dynamic measurements: influences the behavior of railed vehicles in a way so that the dynamic part of the wheel load is small compared to the part of the wheel load due from the weight. In this way optimal measurement results will be reached.

force transducers

Depending on case force transducers are designed as direct measuring rail track elements or as mounting parts.
They combine in an ideal way measuring, bearing and fixing functions in a compact component. Thus fast abrading bearings and moving captivation are avoided in order to enable highest precision and accuracy as well as guarantee long product lifes.

measuring computers MC 10 and MC 20

measurement computer mc20In order to enable a comfortable and intuitional usage the measuring computers are all equipped with a lcd screen to display all measurement results, status messages and operating instructions, a protected tastatur to enter data and function keys to control the operation. The whole facility is protected against wrong or unauthorized usage.

The computers are equipped with various data ports of different standards enabling full network functionality so that attained data can everywhere be processed.

The software RAL consists of a real time operation system to monitor the faultless operation, offers static and dynamic measuring as well as giving possibilities for calibration and diagnostics. It also can calculate rail vehicle masses by using the axle loads. Customer specific wishes can also be implemented.

The hardware is specially constructed for rough industrial applications, and high reliability was proven through many years of operation. Electronics and hardware are supplied in common protection classes. Through the protection against weather conditions outdoor applications are also possible.

Options for wireless data transmissions for example in order to use hand terminals are also possible.

advantages of the RL series

  • short installation and setup time
  • direct measuring active force transducers without abrading bearings and moving capitations
  • automated dynamic or static measurement
  • adaptable to a broad are of installation, plant and environment conditions
  • every track size possible
  • spring hysteresis overcoming device
  • full support and service

types

  • RL 1000
  • RL 2000
  • RL 3000

PRODAT RKM 1000

The wheel load measurement system PRODAT RKM 1000 is designed for the determination of wheel loads in test bays on solid ground. Conceptual approach is simple and rugged construction. It enables dynamic and static measurement with high accuracy on one hand and on the other low investment and service costs. It is ideal measurement equipment, that proves high reliability in industrial applications.

The track consists of two force transducers, that are mounted on a steel- or concrete plate or a railway sleeper in order to create a connection with the sedation track. This design allows very short installation times.

PRODAT RKM 1000 is shippable in combination with the measurement computer MC 10 or MC 20.

RL 1000 can be operated based on real time operating system PRODAT RCOS© together with the the measurement software PRODAT RAL or as another option with PRODAT RAL NT based on Windows NT.

PRODAT RKM 2000

system exampleThe wheel load measurement system PRODAT RKM 2000 is conceived for static and dynamic determination of wheel load differences and acting forces onto the wheels of multi-axle rail vehicles with high precision and accuracy.

advantages:

  • static and dynamic measurement
  • installation height equals track height
  • no welding works necessary
  • two special force transducers for every measurement track with very high exactitude and accurateness
  • thru arrangement of force transducers cross forces are taken into account
  • measurement tracks are just one meter long
  • spring hysteresis device included

System is shippable with measurement computers MC 10 or MC 20. RL 2000 is opera table with PRODAT RCOS© and the software PRODAT RAL or up to choice also with software PRODAT RAL NT based on Windows NT.

PRODAT RKM 3000

RL3000The PRODAT RKM 3000 was developed for the special demands of external use. This expresses itself in extremely robust measurement track construction as well as in the standard software and hardware components. he installation height corresponds to the track height, whereby the measurement track is optimally suited to the elevated or sunken (e.g. steel girder constructions). 2 precision force sensors per measurement track with extremely great accuracy on dynamic and static measurement are used. By the arrangement of the force sensor, measurement-technical lateral forces are taken into consideration. The measurement tracks have a length of only one meter. The installation contains a spring-hysteresis overcoming device.

The PRODAT RKM 3000 was developed for the special demands of external use. This expresses itself in extremely robust
measurement track construction as well as in the standard soft and hardware components.

Some of the system advantages:

  • independent of superstructure and substructure
  • installation in any superstructure without a separate foundation on all commercially-relevant steel, concrete or wooden ties, even in gap less track without any track-stability disadvantage
  • attachment to the ties corresponds to the commercially relevant standard methods
  • available for all commercially-relevant track and gauges
  • drive-over speed of up to 60 km/h
  • multiple measurement point systems to increase precision optionally possible
  • measurement track is tampable
  • measurement data transducers can be welded into the track
  • providing for extremely short installation and initiation times as
    well as low investment costs
  • operating temperature range: -25° C to +60° C
  • measurement speed range: -5m/s to +5m/s

The applied PRODAT RAL Measurement Software, can be operated on the basis of the RCOS® Real Time Operating System or if desired on the basis of Windows NT. It offers numerous operations, as for example the control of statistical and dynamic measurement procedures, self-diagnosis, error recognition, wagon type recognition, gross weight determination. Optionally, remote maintenance operations and vehicle data archiving can be integrated.

application examples

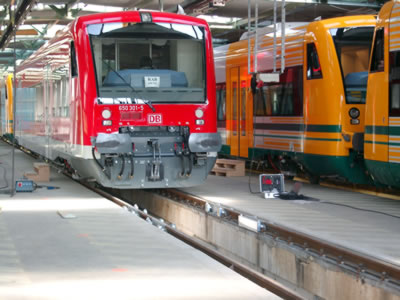

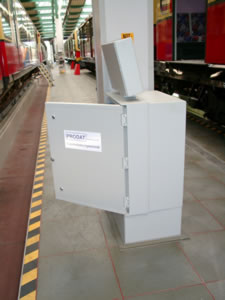

Beispiel 1 Beispiel 2
